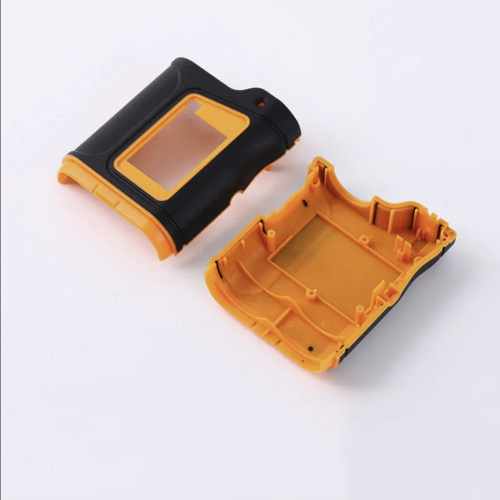

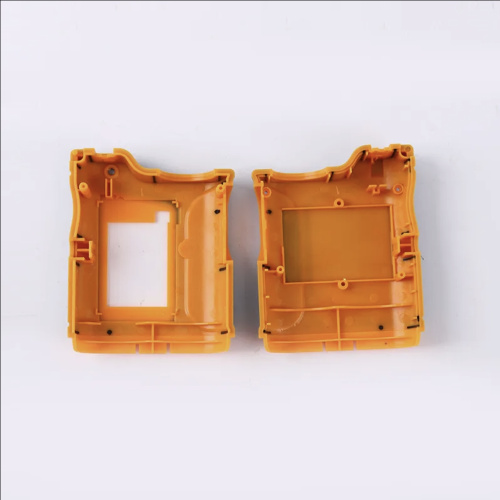

Technical Foundations of High-Precision Multi-Shot Injection Molding
We’ve built our high-precision 2K/3K molding capabilities on advanced technical foundations that make ±0.02mm tolerances achievable in multi-shot injection molding. Our machines are equipped with servo-hydraulic systems that control injection pressure and speed with 0.1% precision, ensuring consistent material flow across both first and second shots. The core of our process lies in rigid machine frames—minimizing deflection during high-pressure molding—and precision rotary platens with positional accuracy of ±0.005mm, critical for aligning multiple material shots. For example, when molding a 2K medical connector, our platen rotation ensures the second material (a flexible TPE) aligns with the rigid PBT core within 0.01mm, maintaining the tight tolerances required for fluid-tight seals. We also use heat-controlled mold blocks with ±0.5°C temperature stability, preventing thermal expansion that could compromise dimensional accuracy. These technical elements form the backbone of our multi-shot injection molding process, enabling us to consistently meet ±0.02mm tolerances even for complex 3K components.
Tolerance Control Strategies in Multi-Shot Injection Molding
Achieving ±0.02mm tolerances in 2K/3K molding requires meticulous tolerance control strategies throughout the multi-shot injection molding process. We start with mold design, using finite element analysis (FEA) to predict shrinkage rates for each material—since different polymers (like PP and TPU) shrink at varying rates, we compensate by adjusting mold dimensions by 0.5-2% based on material properties. During production, real-time process monitoring tracks variables like melt temperature and cooling time, with automatic adjustments to maintain stability; a 1°C deviation in melt temperature triggers an immediate correction to prevent dimensional shifts. We also implement statistical process control (SPC), analyzing data from every 50th part to detect trends before tolerances are breached. A recent 3K project for an electronics sensor required three materials (ABS, PC, and conductive TPE) to align within 0.02mm; our SPC system identified a minor cooling issue, allowing us to adjust water flow and keep all parts within specification. These strategies ensure multi-shot injection molding maintains precision across thousands of production cycles.
Material Compatibility for Dimensional Stability in Multi-Shot Injection Molding
Material compatibility is key to maintaining ±0.02mm tolerances in 2K/3K multi-shot injection molding, as mismatched thermal expansion or shrinkage can destroy precision. We select material pairs with similar coefficients of thermal expansion (CTE), such as PBT and PBT-based TPEs, which expand and contract at nearly identical rates when exposed to temperature changes. For dissimilar materials, we use engineering-grade adhesives or chemical bonding agents integrated into the molding process—for example, bonding PA66 with silicone requires a primer applied during the first shot to ensure both materials shrink uniformly. We also test material combinations under thermal cycling (-40°C to 85°C) to verify dimensional stability; a 2K automotive part combining PP and EPDM passed 1,000 cycles with total dimensional change of just 0.015mm, well within our ±0.02mm target. By prioritizing compatibility, we ensure multi-shot injection molding components remain precise even in extreme environments.
Advanced Metrology for Verifying Multi-Shot Injection Molding Precision
Verifying ±0.02mm tolerances in multi-shot injection molding requires advanced metrology tools that can measure complex 2K/3K components with sub-micron accuracy. Our quality lab features coordinate measuring machines (CMMs) with laser scanning capabilities that capture 3D data points at 0.001mm intervals, creating detailed models of multi-shot parts to compare against CAD designs. For internal features or hidden interfaces between materials, we use computed tomography (CT) scanning, which reveals dimensional relationships invisible to traditional tools—critical for verifying that a 3K part’s inner TPE seal aligns with its outer rigid shell within 0.02mm. We also employ automated vision systems with 500x magnification for 100% inspection of high-volume parts, checking key dimensions in seconds. A recent audit of 10,000 2K connectors showed 99.7% met our ±0.02mm tolerance, with the CMM data confirming consistent precision across all production batches. This metrology ensures our multi-shot injection molding delivers the precision clients require.
Industry Applications Demanding High-Precision Multi-Shot Injection Molding
Several industries rely on our high-precision 2K/3K multi-shot injection molding to achieve functionality that would be impossible with looser tolerances. In medical devices, our 2K syringe plungers combine a rigid PP core with a silicone tip, requiring ±0.02mm alignment to ensure smooth operation and prevent fluid leakage—critical for accurate drug delivery. The aerospace sector uses our 3K sensors, where metal inserts, PEEK housings, and TPE gaskets must align within 0.02mm to maintain pressure tightness at high altitudes. Consumer electronics benefit from our 2K micro-connectors, which pair rigid LCP with flexible TPE to ensure electrical contacts meet within 0.015mm, enabling reliable data transfer in compact devices. Even automotive safety components, like 2K airbag initiators, depend on our multi-shot injection molding precision to ensure explosive charges and plastic housings align perfectly, preventing misfires. These applications prove that ±0.02mm tolerances in multi-shot injection molding are not just specifications but enablers of critical functionality.
Process Validation for Sustained Precision in Multi-Shot Injection Molding
We validate our multi-shot injection molding processes to ensure sustained ±0.02mm tolerances over long production runs, giving clients confidence in consistent precision. Before full-scale production, we conduct process capability studies (Cpk ≥ 1.67) for 2K/3K parts, producing 500 sample components and measuring key dimensions to confirm stability. For a 3K industrial valve, this study revealed that mold temperature variations of more than 1°C caused dimensional shifts, prompting us to install secondary temperature controls that reduced variation to ±0.3°C. We also perform periodic revalidation, especially after material changes or machine maintenance, to ensure precision is maintained. Our validation protocols include long-term testing—exposing parts to humidity, vibration, and thermal stress—to verify that tolerances remain within ±0.02mm over time. A client’s 2K automotive sensor, validated three years ago, still meets tolerance requirements in ongoing production, demonstrating that our multi-shot injection molding processes deliver sustained precision.
